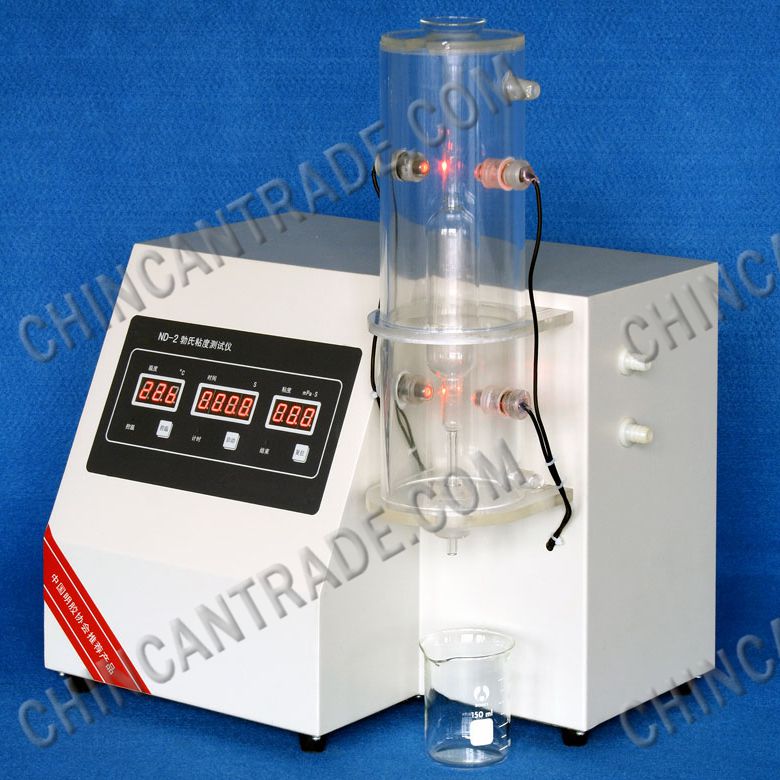

ND-2
BLOOM VISCOSITY TESTER
ND series of instruments are used for detecting Bloom viscosity of gelatin.
Applicable standard
National standard (Food additive Gelatin) GB6783-94
Vocation standard (Gelatin for medicine) QB2354-98
Corporate standard(Thickness tester) Q/12XQ0193-2010
Features:
A MPU is used to control all operations in Bloom Viscosity tester. It works in Bloom mode and the viscosity data is displayed by LED.
High temperature accuracy . Even temperature of the bath liquid.
Using capillary and precise photo-electricity transducer.
Automatically calculating time and viscosity.
Auto-timing, auto-alarming, auto-testing continually.
Auto-preset piece number, auto-test hardness, display preset and real-time data alternately in time.
Automation : auto-test, auto-diagnose, auto-alarm.
Specifications:
Test range (0～99.9) mPa·s
Test accuracy 0.2mPa·s
Temperature control 60.0℃
Temperature control accuracy ±0.1℃
Volume 100ml
Volume accuracy ±0.5ml
Recital distance (152±2)mm
Time range (0～999.9)s
Power 220V/ 50Hz/ 600W
Dimension (400×300×450)mm3
