ZR1050A
Rotary Evaporator
Technical parameter
| Model | ZR1050A |
| Optimuambient temperature | 5～35 |
| Working power supply (V/Hz) | Single phase 220/60 |
| Main engine speed control | Digital direct current stepless speed regulation |
| Main engine speed (RPM) | 20～110 |
| Rotary electric machine (W) | Brushless 250 |
| Temperature control (c) | Digital display temperature control, room temperature -99 |
| Maximum vacuum(Pa) | 399.9（Below 3mmHg） |
| Rotating bottle (L) | Fifty Flange 125 |
| Recovery bottle (L) | 20 |
| condenser tube | The vertical main cold + cold side, high efficiency reflux condenser |
| Evaporation capacity (L/h) | The water is more than 9 Alcohol is more than 19 |
| Water bath pot material | stainless steel |
| Water bath pot size (mm) | Φ550×320 |
| Lifting function | Electric lift |
| Lift stroke(mm) | 0～180 |
| Whole power(kW) | 8.3 |
| Outline dimension (mm) | 1320×770×2340 |

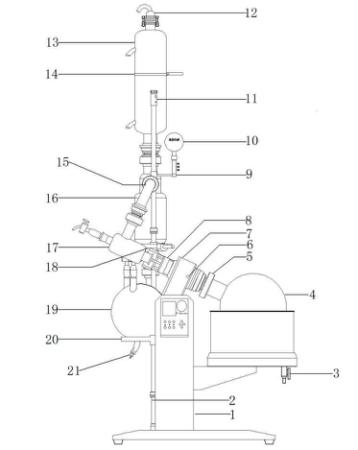

ZR1050A complete machine diagram
.jpg)
|
1. |
Distillation: host + Bath |
2. |
upright |
|
|
3. |
plug assy lrain |
4. |
Rotary bottle |
|
|
5. |
Rotary bottle fixing nut |
6. |
Rotary bottle lock |
|
|
7. |
Nose |
8. |
Three way bottle fixing nut |
|
|
9. |
Vacuum table fixing rack |
10. |
Vacuum meter |
|
|
11. |
Condenser clamp fixing seat |
12. |
Suction flange |
|
|
13. |
main condenser |
14. |
Silicone rubber band |
|
|
15. |
Glass elbow |
16. |
Auxiliary condenser |
|
|
17. |
Three bottles |
18. |
Condenser tray |
|
|
19. |
Recovery bottle |
20. |
Recovery bottle tray |
|
|
21. |
Discharge valve |
|
|
|
