dFlow

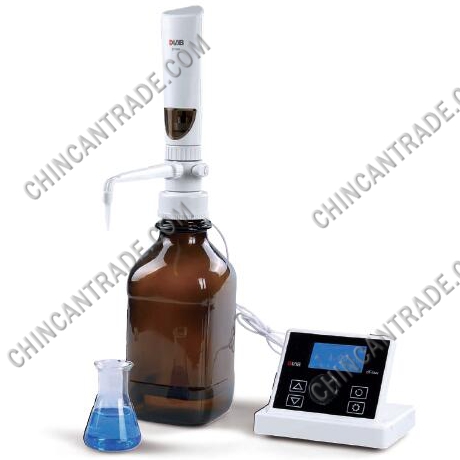

Electronic Bottle-Top Dispenser
Features
• Motor operation minimizes the grip force
• Electronic control decreases the repetitive strain injury
• Remote control panel prevents manual disturbance during operation
• Two Dispensing modes:
• dispenser
• stepper function
Specifications
| VolumeRange | 0.1-99.9mL, Max piston lift is 10mL, resolution is 100μL |
| Volume Accuracy |
Dispenser: R = 10mL ±30μL; CV = 10ml ±10μL
Stepper: R = 1mL ±6μL; CV = 1ML ±9μL
|
| Operating Temperature Range | 10℃-30℃ |
| Quality Control | DIN EN ISO 8655 |
| Contro Type |
External control |
