DO511T
Portable Dissolved Oxygen Meter
.jpg)
GENERAL FEATURES

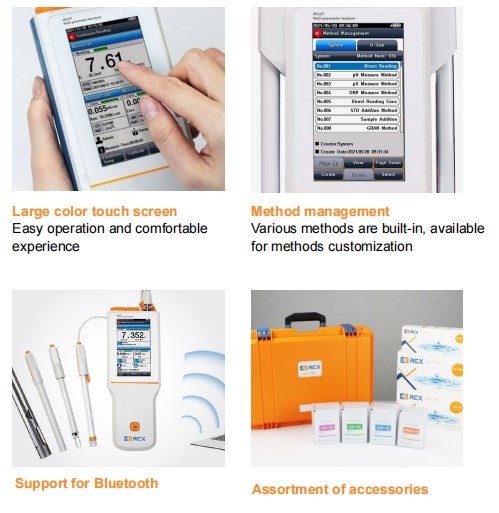

● Color High contrast LCD touchscreen, 4.3 inches.
● Intelligent operation system provides features including user management, calibration management, electrode management, method management, data management and etc.
● Multi-reading feature allows auto-read, timed-read and continuous-read.
● Automatic/Manual temperature compensation ensures accurate results.
● Auto-hold feature senses and locks the measurement endpoint.
● Data storage 1000 sets for each parameters (GLP-compliant).
● Data analysis feature helps user review, compare and recalculate results.
● Support for USB communication.
● Auto-power off feature effectively extends the battery service life.
● Reset feature automatically resumes all settings back to factory default options.
● IP65 waterproof.
DO
● Support for air-saturated water or zero oxygen calibration.
● Auto barometric pressure compensation .
● Manual Salinity Factor Correction.
● Selectable pressure unit, including kPa, mbar, Torr, Atm.
Specification
|
Model |
DO511T |
|
|
Parameters |
DO/Temp(DO Saturation). |
|
|
Dissolved Oxygen Concentration |
Sensor Type |
Optical |
|
Range |
0.00 to 20.00 mg/L |
|
|
Resolution |
0.01mg/L |
|
|
Accuracy |
±0.3mg/L (0.00 to 20.00 mg/L) |
|
|
Calibration Points |
Air-saturated water or zero point |
|
|
Barometric Compensation |
Yes |
|
|
Manual Salinity Factor Correction |
Yes |
|
|
DO Saturation |
Range |
(0.0 to 200.0)% |
|
Resolution |
0.10% |
|
|
Accuracy |
±10.0% |
|
|
Temperature |
Range |
0 to 50 ºC |
|
Unit |
ºC |
|
|
Resolution |
0.1 |
|
|
Relative Accuracy |
±0.2 |
|
|
Measurement |
Reading Mode |
Auto Read (Fast, Medium, Slow), Timed, Continuous |
|
Reading Prompts |
Reading, Stable, Locked |
|
|
Temp. Compensation |
ATC, MTC |
|
|
Data management |
Data Storage |
1000 Groups |
|
GLP Features |
Yes |
|
|
Inputs |
DO with Temp. Probe |
4-pin aviation connector |
|
Outputs |
USB |
USB 2.0 flash memory device, PC, scanner |
|
Bluetooth |
printer |
|
|
Display options |
Backlight |
Yes |
|
Auto Shutdown |
300, 600, 1200, 1800, 3600 sec., off |
|
|
IP Rating |
IP65 |
|
|
Date and Time |
Yes |
|
|
General |
Power |
Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
|
Dimensions |
96×201×55 mm |
|
|
Weight |
300g (0.66 lb) |
|
