♦ Please read the instruction in detail and keep it well for further reading and consulting.
♦ Please follow the instruction to fit and operate the machine correctly.
♦ Please do not remove and change any accessories of the machine.
♦ It forbids others to open and remove the mainframe except the authorized people in the company.
♦ It forbids others to change and maintain the machine except the professional people.
♦ Please contact us if there is any trouble during operation

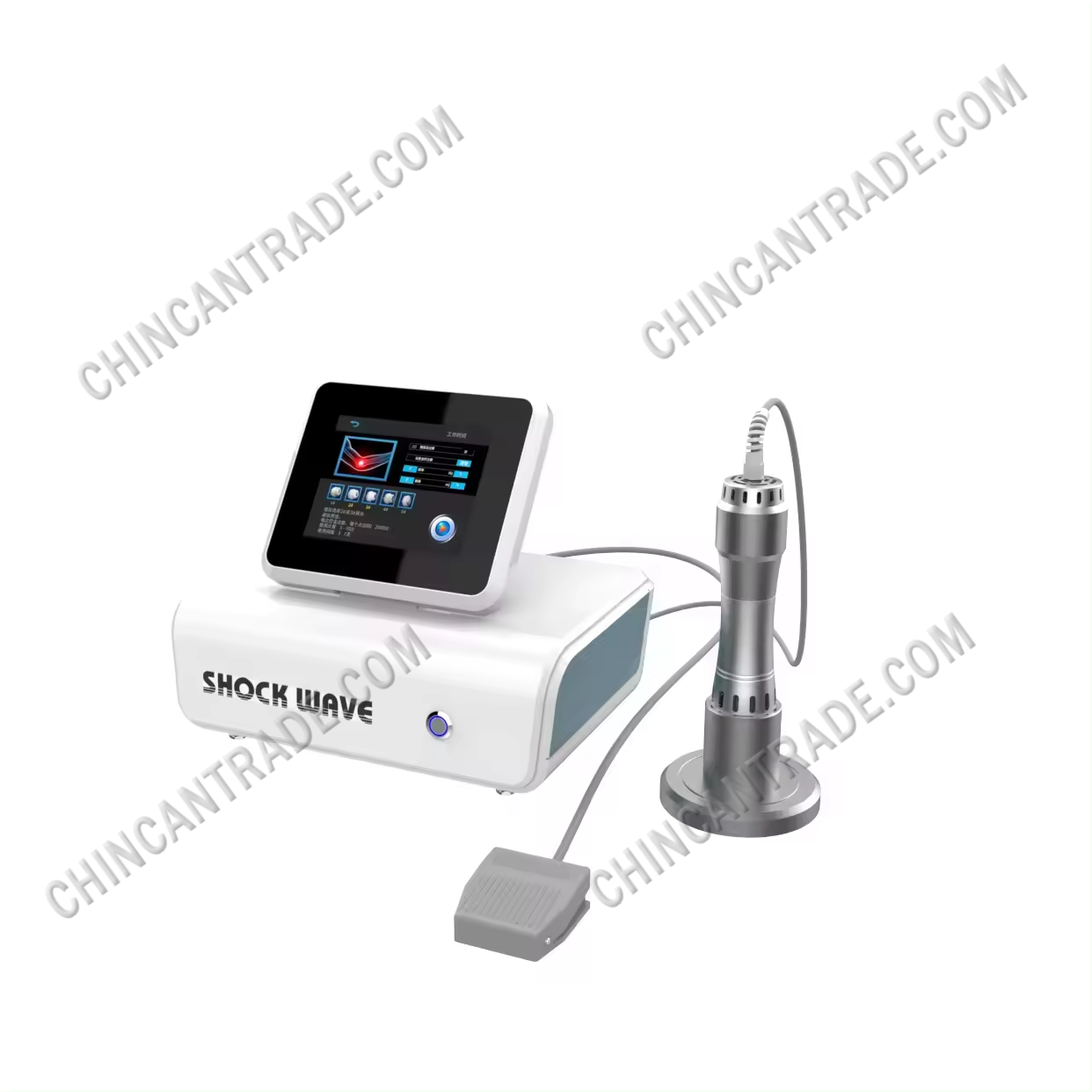

Parts Introduction
1. Machine Body
2. Touch screen
3. Turn on button
4. Handle
5. Handle frame
6. Shockwave foot switch
Accessories
Any part of instrument made of PMMA material (for example: accessories shelf, panel, transparent handles,etc.). Do not use alcohol or corrosive solvent to wipe clean.
General Introduction
A shockwave is defined as a wave with a rapid increase of increase of pressure within a very short time and then having a gradual decrease of pressure with a small negative pressure phase. Shockwave is aimed at the affected areas that are the source of chronic pain. The influence of the shockwaves causes to the dissolution of calcium deposits and leads to better vascularization. The after-effect is relief from the pain.
Shockwave has the following effects:
> Cellular: Increase in cell membrane transmittance by improving ionic channels activity, stimulation of cell division, stimulation of cellular cytokines production.
> Reproduction of vessels in the area of tendons and muscles: Improvement of blood circulation, increase in concentration of growth factor beta 1 , chemotactic and mitogenic effect on osteoblasts.
> ED treatment ( erectile dysfunction treatment )
> Effect on nitrogen oxide system: Bone healing and remodelling.
> Improvement of mocro-circulation and metabolism.
> Dissolution of calcified fibroblasts.
> Supports the production of collagen.
> Reduction in tissue tension.
> Analgesic effect.
Advantage
1 .By the targeted application of the shockwaves, stress to the surrounding tissues is quite insignificant.
2. The body is not burdened by pharmaceuticals, except the short-term effect of local anaesthesia, if used.
3. The possibility of preventing the necessity of surgical intervention and its relevant hazards.
4. For some indications, such as Tennis Elbow, there is really no other effective treatment.
Introduction of system function
1、Start interface: the system is self-checking....as the following picture
The self-checking process is about 5 to 15 seconds, and then it will change to the function interface.
Picture 1 :the system is self-checking.
2、After self-checking, this instrument will change to the function interface as the following picture.
Picture2: function choosing interface
3、Touch and click any function part and you will come to this operator interface as the following picture.
Click or touch this sign and you can return to the function choosing interface
Location display
Click this sign ,it means start/pause, click or touch “►”,the system will pre-start, bueatician can put the turn on and turn off switch under feet. It will work when step it and stop if not step it. Click “►”when you need to pause.
This sign means the pre-designed times are 2500 times. It means that the system will automatically stop after it hits 2500 times.
The current hitting times means the current hitting times for treatment process. Click "zero clearing" to clear the number of hits.
This icon means Frequency 1Hz means the system default working frequency is 1Hz. You can click “<”and“>”to adjust the frequency. The range is 1HZ~16Hz.
It means the energy level is the system default
Working level. You can click “<”and“>”to adjust the energy level.
When the frequency is 1Hz and 12 Hz, the range of energy level you can adjust is 30mj~100mj
When the frequency is 13Hz or 14 Hz, the range of energy level you can adjust is 30mj~80mj.
When the frequency is 15Hz or 16 Hz, the range of energy level you can adjust is 30mj~50mj.
this icon means the using tips of Probe(1-7#)
it means the working time, using times and using interval of every probe.
