M-Blot H4000 Fully Automatic WB Incubation Workstation

Fully Automatic WB Incubation Workstation

Product Features

The M-Blot fully automatic WB incubation workstation can automatically complete the sealing, incubation, and washing processes during the Western Blot process.
Simply add the membrane and reagents to the instrument at once, set up and start the program, and wait for the incubation work to be completed.
This saves time and effort, simplifies operations, and shortens time.


Product Advantages

1. Automatically complete sealing, primary antibody incubation, secondary antibody incubation, and cleaning.
2. Autonomous regulation from 4 ℃ to 37 ℃; 4 ℃ constant temperature storage (adjustable).
3. Independent control of different incubation boxes.
4. The size of the incubation box is optional.
5. Automatic recovery of primary and secondary antibodies with high recovery rate.
6. Automatic cleaning of pipelines during operation.
7. Compatible with different brands of primary, secondary, and cleaning solutions.
8. Program control, high repeatability of experiments.

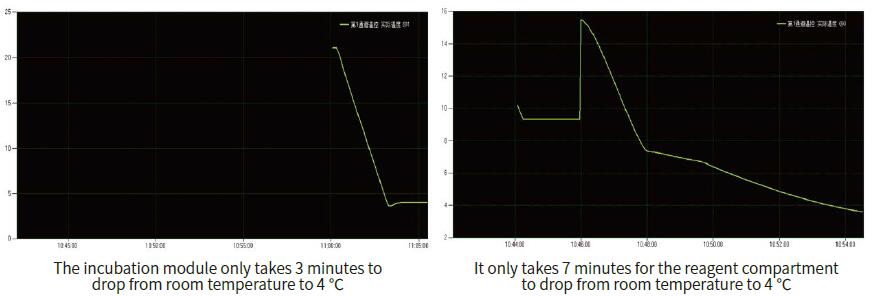

Display of temperature control effect



Technical Parameters

Product Name

Fully Automatic WB Incubation Workstation

Model

M-Blot H4000

Article number

TY-201-04

Applicable scope

Western blot analysis

Number of channels

4-channel, independent operation between channels

Incubation quantity

Up to 12 membranes can be incubated simultaneously

Incubation temperature

4 ℃~37 ℃, fully precise temperature control can be achieved, and the temperature can be fully autonomously adjusted

Reagent storage

4 ℃ constant temperature storage (adjustable)

Reagent dosage

When using the minimum incubation box, the minimum dosage of primary antibody is 1mL.

Reagent recovery

Antibody recovery rate ≥ 95%

Reagent open

Compatible with different brands of antibodies, avoiding experimental adjustments due to antibody replacement, and avoiding waste of experimental resources

Incubation box

Different sizes of incubation boxes are available for selection, and the unique design can improve the antibody recovery rate, with a maximum recovery rate of up to 95%

Incubation shaker

30~600rpm (adjustable)

Liquid circulation

Automatically replenish washing solution and drain waste liquid

Preset program

Up to 999 sets of programs can be stored, and experimental programs can be fully customized and set according to experimental requirements.

Experimental plan

Up to 99 new steps can be created, with independent settings for time, reagent volume, cleaning frequency, and temperature.

Experimental repeatability

High precision peristaltic pump control avoids human operation errors and ensures experimental repeatability between batches

Control mode

10 inch Chinese color LCD touch display

Pipe materials

Ultra low adsorption polytetrafluoroethylene pipeline

Cooling module

Efficient liquid cooling+cold exhaust fan

Working environment temperature

10 ℃~40 ℃

Relative humidity of working environment

≤ 80%

Input voltage

200-220V AC, 50/60Hz; 600W

Material

Silicone, stainless steel, aluminum alloy, ABS, polytetrafluoroethylene

Appearance dimensions

465 × 300 × 330 (mm)

Weight

25kg
